FDC Toolset

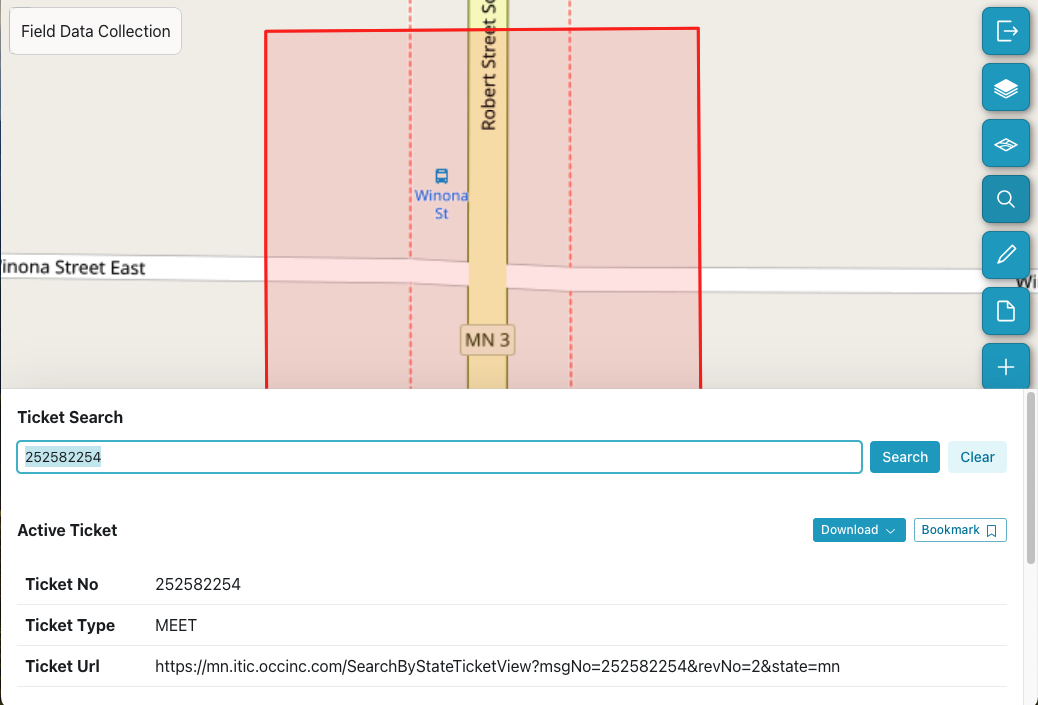

Search for a Ticket

To get started, use Search to open an existing 811 ticket by entering the ticket number. Once you open your ticket the two inactive tools - Add/Edit Features and Manage documents tools - are enabled. Information about the ticket is displayed:

Ticket Number
Ticket Type
Ticket URL

Scroll down to see the Features that were in the 811 ticket. Features you add or edit will also be displayed here.

Search for an 811 Ticket

My Tickets

Scroll down to see a list of your tickets. Once you add or edit a feature, that ticket will appear in your My Tickets list. If you want to remove a ticket from this list, you must first remove any features you have added to the ticket. This action cannot be undone.

Using the My Tickets List

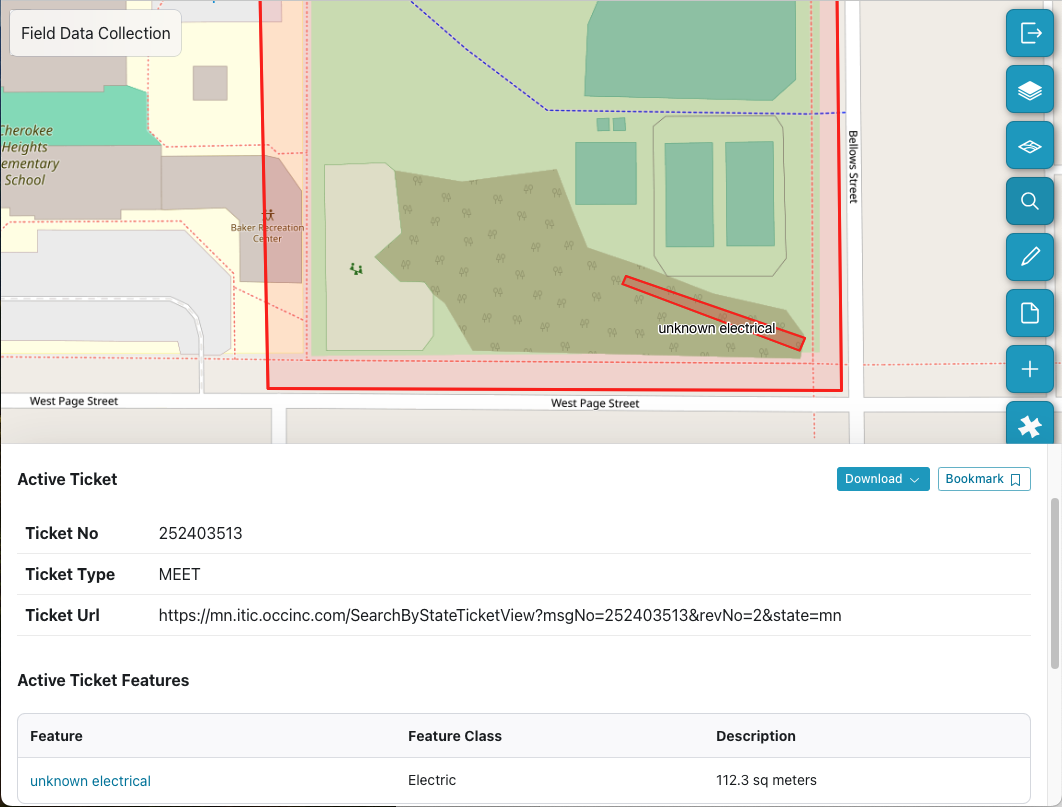

Bookmarks

If you haven’t edited a ticket, you can still add it to your list of tickets and easily return to it, by clicking Bookmark. You can remove the bookmark by clicking the icon to the right of the ticket or feature.

Hint

Click anywhere on the map to close search and increase your viewing area.

Using Bookmarks

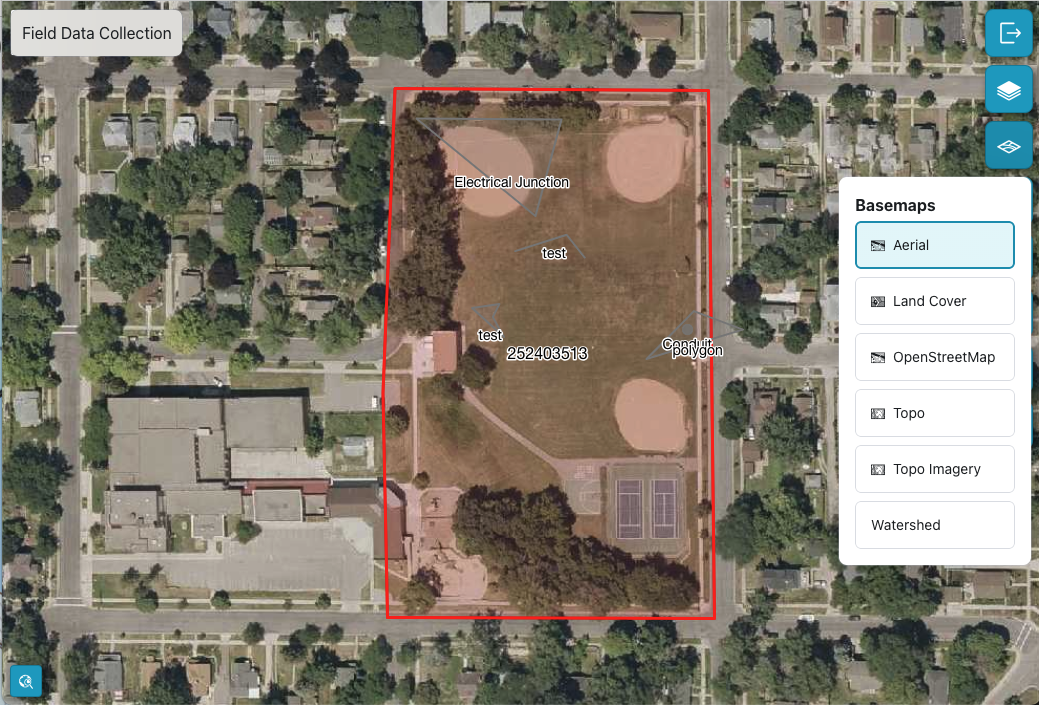

Basemaps

By default your ticket opened up in the OpenStreetMap basemap. Use the Basemap icon to select from the list of other available map styles:

Aerial
Topo
Topo Imagery

Basemap Options

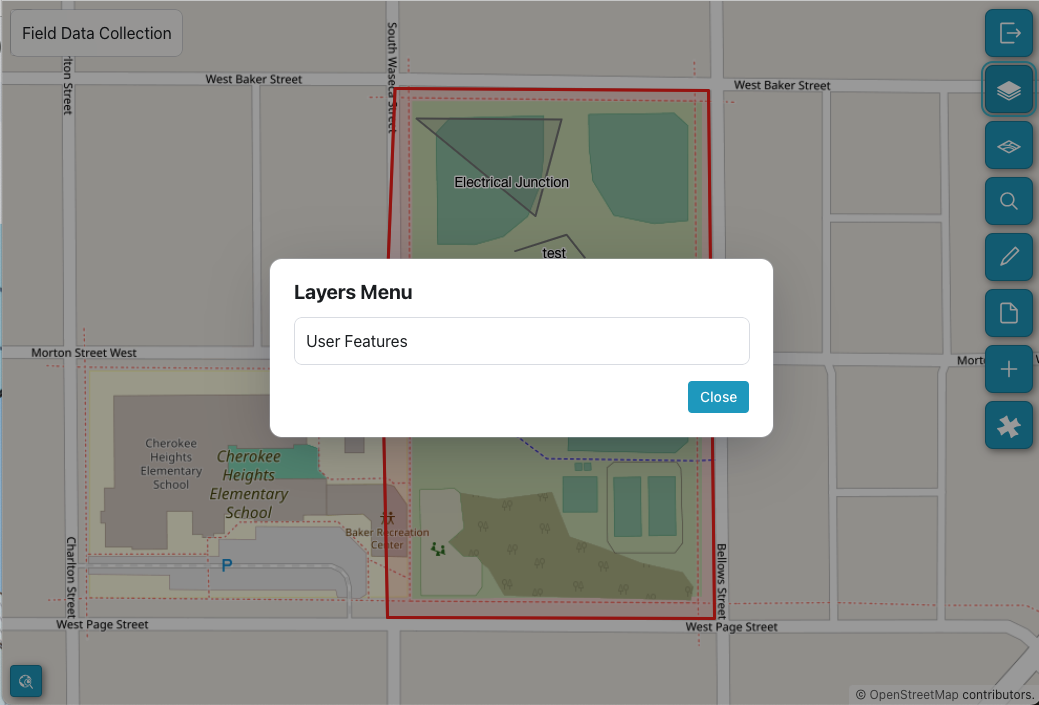

Layers

By default you see all ticket features. You can select Layers to hide any User Features you added, allowing you to focus on the features from the 811 ticket. Select user features again to make them visible again.

View or Hide Layers

Navigation

If you are on location at the dig site, click the Location map icon in the bottom left of the screen. This will zoom into the ticket boundaries for a close up look at the features. You can zoom in or out using your mouse wheel to select the specific zoom that works for you.

FDC automatically shows your current location if you allowed this in your computer’s settings. Toggle it off with the Hide Current Location button.

Caution

When using FDC from an office, be aware that the location detected may not be your actual location, but the location of elements of your IT infrastrucucture.

Navigation in FDC

Add/Edit Features

To add new or edit existing features for this ticket that only you can see, select the Add/Edit Features or pencil icon from the toolset. Define the information needed to capture a new feature: To add new or edit existing features for this ticket that only you can see, select the Add/Edit Features or pencil icon from the toolset. Define the information needed to capture a new feature:

Geometry Types you want to add: a point, a polygon, or a line.
Choose the appropriate Feature Class such as Reference, Electrical, etc.
Create a Label that will identify this feature in the future.
It is always helpful to include Notes to describe the feature you are adding.

Supported Geometry Types

Draw Feature

Once you click the Draw Feature button you are in the drawing mode. Click on the map at the site of the feature you want to add.

For a point, click again to create the point.
For a line, click once, then drag to the end of the line and click again.
For a polygon, click at each change in direction and then double click to close the polygon.

To edit a feature you created, double click on it. It will turn yellow, then you can select and drag lines or points or corners of the polygon.

You can Clear the drawing if you need to start over.

Drawing a New Feature

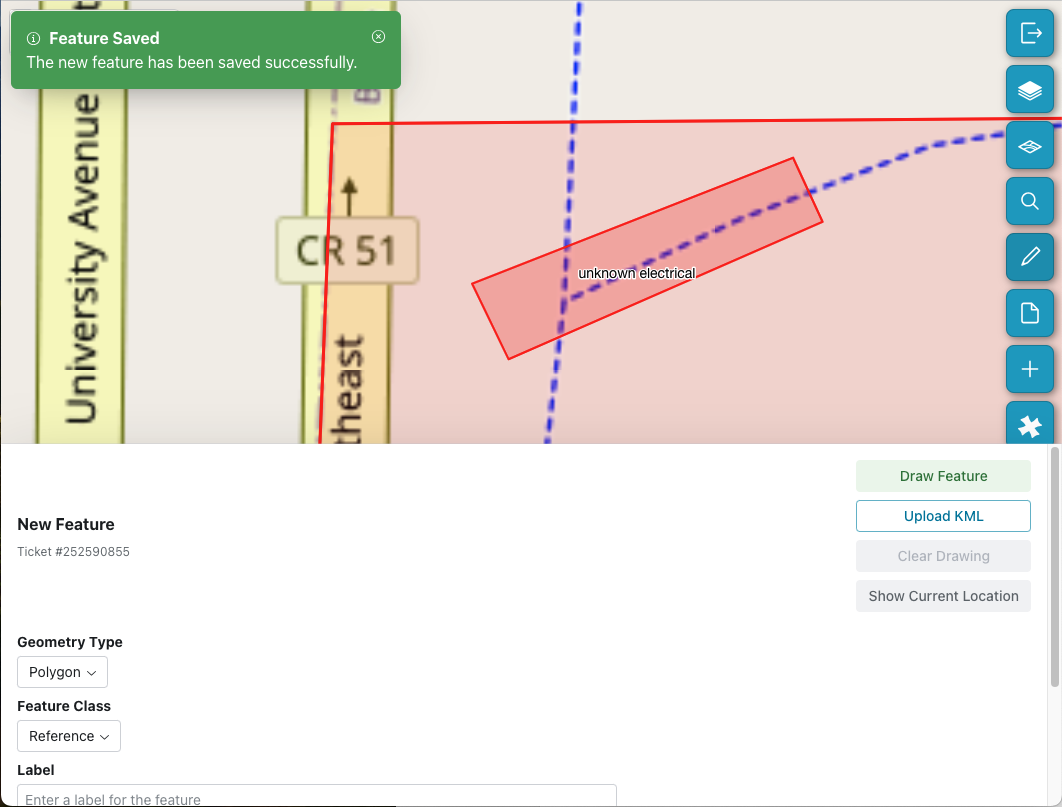

Note

Don’t forget, when you’re finished, select Save Feature.

Editing Saved Features

Upload KML

If you have feature data in a Keyhole Markup Language (KML), you can upload it to FDC to create a new feature. A KML file is an XML-based file format used for displaying geographic data on 2D and 3D maps.

Importing and Exporting Features

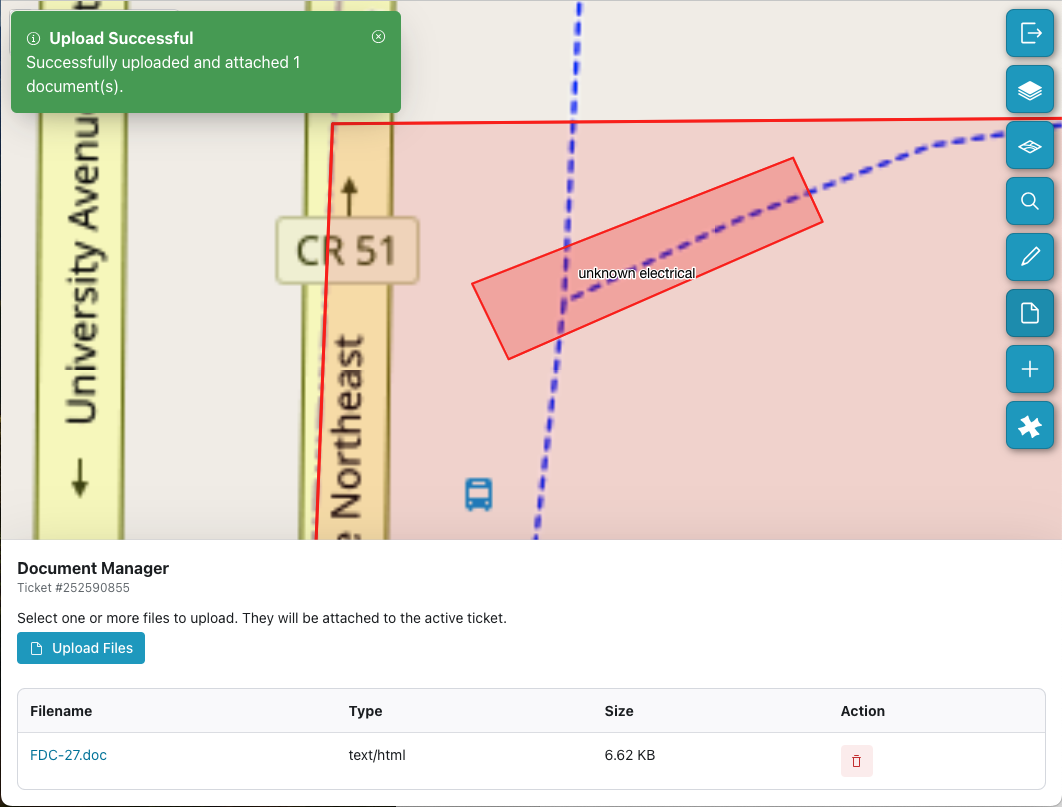

Document Manager

You can collect photos, video, and other document types and associate them with your active ticket. Click Upload Files to select one or more documents. All attached documents will be displayed in the Document Manager until you remove them. Only you can view these documents. You can add as many documents as you need or delete older unneeded files.

Document Management

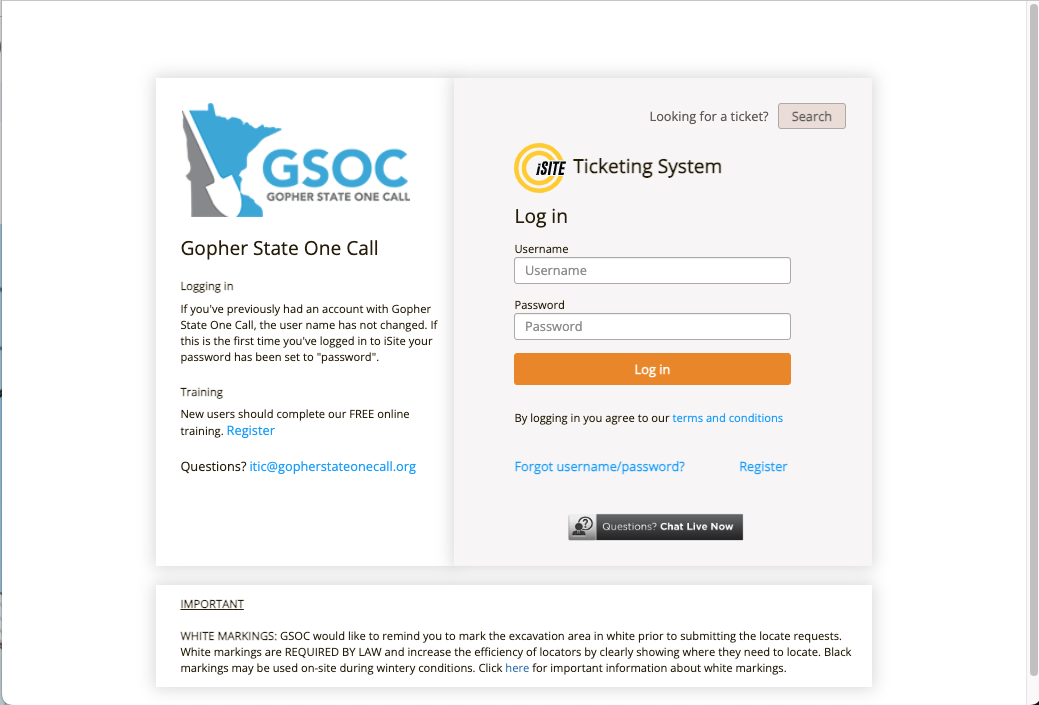

New 811 Ticket

You can use FDC to link to Gopher State One Call (GSOC) and create a new ticket. Click the plus sign to login into GSOC and create a ticket. Go back to FDC by clicking the back arrow in your browser to return to fdc.sharedgeo.net

Open a new ticket in GSOC — *Create a new 811 Ticket*

Report a Field Strike

When a field strike occurs, it’s important to report the damage as soon as possible. Click on the hazard icon to get the information you need to quickly contact GSOC.

Report a strike — *Info to report a strike*

Reporting a Strike

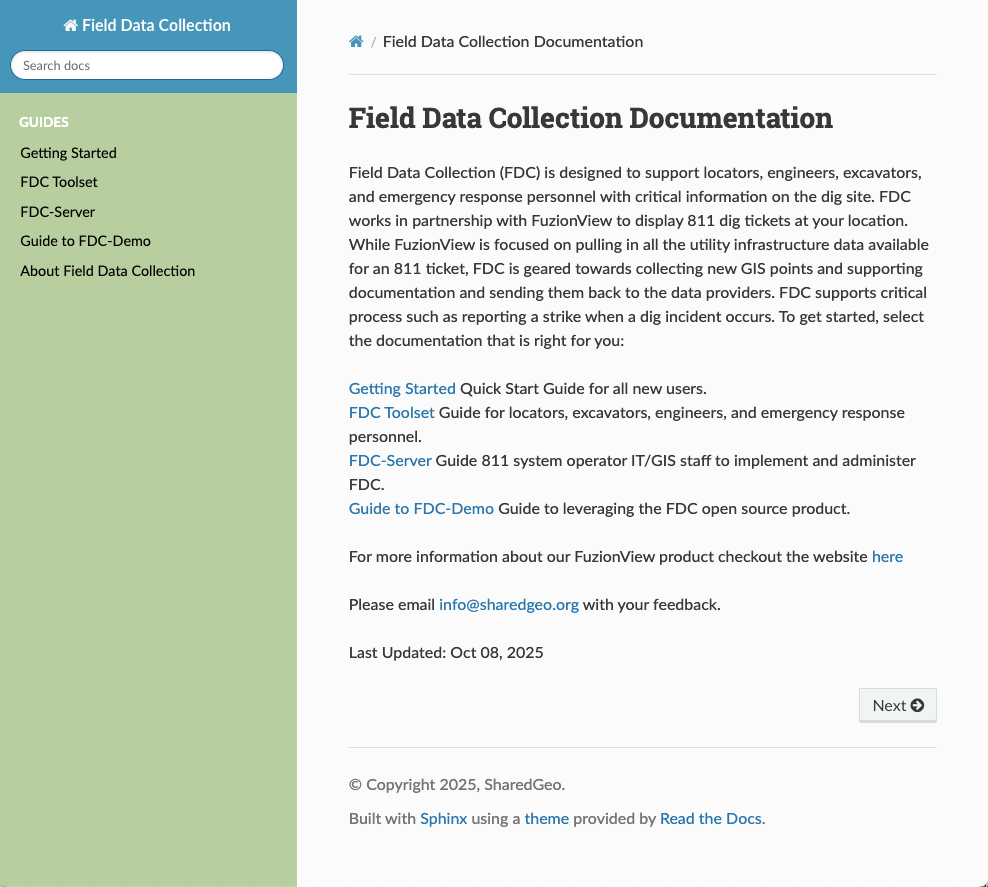

Documentation

You can access the FDC user guide by clicking on the information icon. Use your browser back button to return to fdc.sharedgeo.org.

The FDC User Guide

Caution

The FDC application is designed to supplement your 811 ticket. Not all utility information has been shared and some features in your ticket boundary may not be shown.

In Summary
